Description

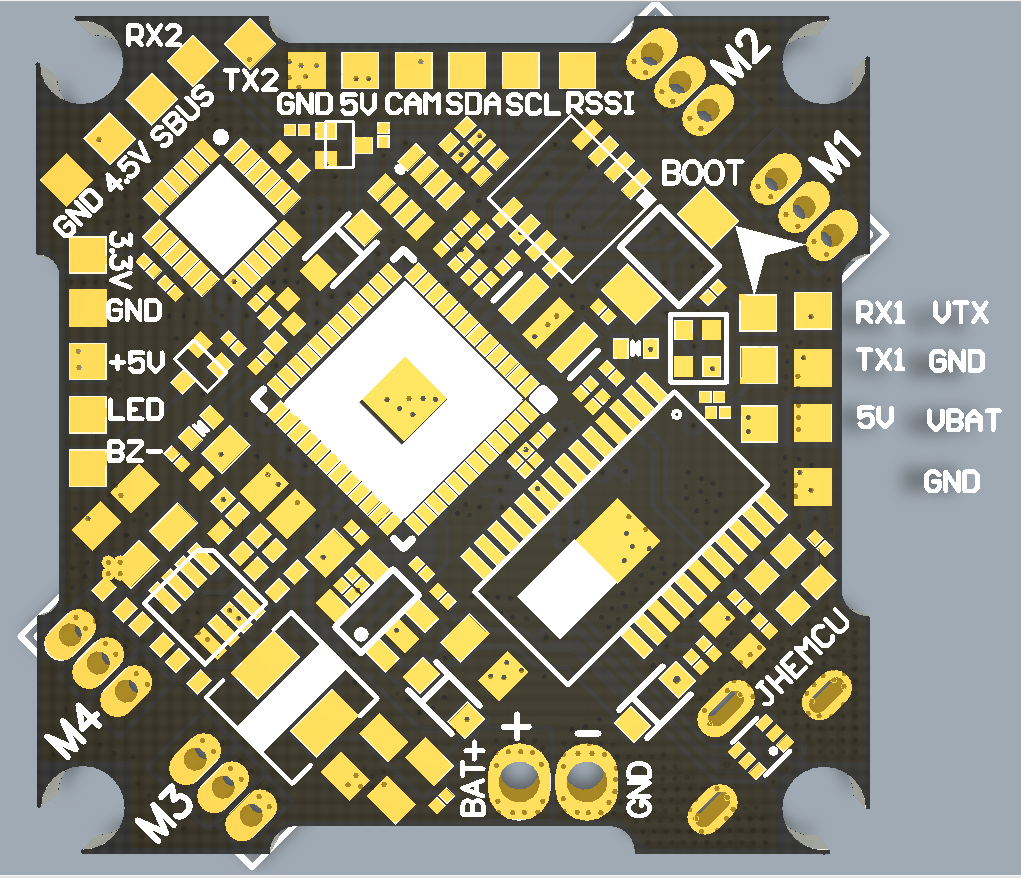

JHEMCU GHF412 2-4S 25*25 AIO W/ 12A BLHeli_S ESC(DVR,Barometer)
Flight control parameters
· CPU: STM32F411 (100MHZ)
· MPU6000 (SPI connection)
· Size: 32.5 * 32.5mm (25.5mm mounting hole)
· Firmware version: JHEF411.HEX
· OSD: Built-in BetaFlight OSD (OSD chip: AT7456E)
· Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
· Support WS2812 and other programmable LEDs
· Built-in current sensor
· Weight: 5.0 grams
ESC parameters
· Support BLheli / BLHELI_S
· Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
· Input voltage: 2S-4S Lipo
· Continuous current: 12A
· Firmware: BLHELI_S(G_H_30_REV16_7.HEX)
· Motor connector: 1.25mm pin header connector
Packing List
18AWG red line 1
18AWG black wire 1
·M2*6.3MM Red line shock absorbing ball 4
4 3P*1.25MM straight sockets
XT-30 plug 1
470UF/25V electrolytic capacitor 1 pc
